Type
|
Material |
Size mm
|
Pathlength
|
Polished Window
|
Volumn ml
|
||||

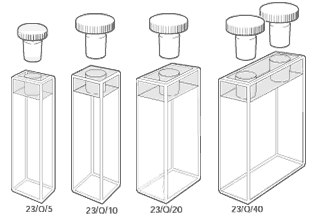

3/Q/5,23/Q/5 |
Quartz
|
10*5*45
|
5 mm
|
4
|
1.7
|
||||
3/Q/10,23/Q/10 |
Quartz
|
10*10*45
|
10 mm
|
4
|
3.5
|
||||
3/Q/20,23/Q/20
|
Quartz
|
10*20*45
|
20 mm
|
4
|
7.0
|
||||
3/Q/40,23/Q/40 |
Quartz
|
10*40*45
|
40 mm
|
4
|
14
|
||||
Type |
Material |
Size mm |
Pathlength |
Polished Window |
Volumn
ml |
||||

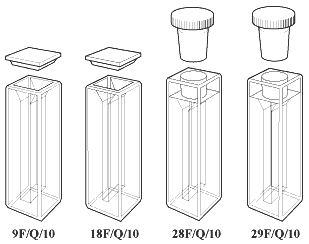

9F/Q/10 |
Quartz |
10*5*45 |
4 mm |
4 |
1.4 |
||||
18F/Q/10 |
Quartz |
10*10*45 |
2 mm |
4 |
0.7 |
||||
28F/Q/10
|
Quartz |
10*10*45 |
2 mm |
4 |
0.7 |
||||
29F/Q/10 |
Quartz |
10*10*45 |
4 mm |
4 |
1.4 |
||||
Type |
Material |
Size mm |
Pathlength |
Polished Window |
Volumn
ml |
||||
61F/Q/10 |
Quartz |
10*10*48 |
7 mm |
3 |
2.59 |
||||
62F/Q/10 |
Quartz |
10*10*48 |
4.5 mm |
5 |
1.66 |
||||
63F/Q/10
|
Quartz |
10*10*48 |
4.5 mm |
5 |
1.66 |
||||
Type 47,71 Fluorimeter
Flow Through cell
Plaese contract with us
Type 16 Fluorimeter
Sub-Micro Cell
0.010ml,0.012ml,0.040ml,
0.045ml,0.120ml,0.050ml,
0.100ml,0.160 ml
Please contract with us
Type 52,53 Fluorimeter
Dual pathlength cell
0.4ml,0.8ml,1.2ml
1.6ml,2.0ml
Please contract with us
Fluorometer Cell with PTFE Cover for Cryogenics Work
MATERIAL: UV Quartz, ES Quartz, IR Quartz
Four Windows and Base Polished.
Working area of windows is 4 mm wide.
L/P | OL | OW | OH | IL | IW | Volume |
10 | 12.5 | 12.5 | 45 | 10 | 10 | 3.5 ml |
Fluorometer Cell with PTFE Stopper for Cryogenics Work
MATERIAL: UV Quartz, ES Quartz
Four Windows and Base Polished.
Height is w/o Stopper.
Working area of windows is 4 mm wide.
L/P | OL | OW | OH | IL | IW | Volume |
10 | 12.5 | 12.5 | 49 | 10 | 10 | 3.5 ml |
Maker : NSG / USA
