A basic single syringe, infusion pump which combines precision with simplicity.

Features

Model
KD-100
KD-101
KD-200
KD-220
No of Syringe
1
2
2
4,6,10
Syringe Size
10 ul - 60 ml
10 ul - 10 ml
10 ul - 140 ml / ea
10 ul - 140 ml / ea
KDS-100 規格 :
Specification :
More Information
Flow Rate :

Syringe

Minimum

Maximum

10 ul

0.1 ul/h

126 ul/h

25 ul

0.2 ul /h

318 ul/h

50 ul

0.2 ul/h

625 ul/h

100 ul

1.0 ul /h

1274 ul/h

250 ul

2.0 ul/h

3164 ul/h

500 ul

3.0 ul /h

6359 ul/h

1 ml

0.01 ml/h

13.2 ml/h

2.5  ml

0.02  ml/h

31.7 ml/h

3 ml

0.03 ml/h

44.9 ml/h

5 ml

0.03  ml/h

87.0 ml/h

10 ml

0.1 ml/h

127ml/h

20 ml

0.1  ml/h

219 ml/h

30 ml

0.1  ml/h

282 ml/h

60 ml

0.2  ml/h

519 ml/h

Pump Type:
  • Infusion

Max. No. of  Syringes
  • One
    •

Syringe Size
  • 10 ul to 60 ml

Dimensions
  • 9 x 6 x 5 in.
  • 23 x 15 x 14 cm
    •

Weight
  • 4.5 lb (2 kg)
    •

Linear Force
  • 20 lb (9 kg) min.
    •

Advance Per Microstep
  • 0.529 micron (1/2 step)
    •

Max Step Rate (1/2 Step)
  • 400 steps/sec
    •

Min Step Rate
  • 1 step / 30 sec.
    •

Accuracy
  • 1%

KDS-410 高強度推力 幫浦

> 100 lbs linear force

Wide variety of syringes from 10 μl to 140 ml

Minimum flow rate of 0.001 μl/hr using 10 μl syringe

Maximum flow rate of 146.7 ml/min using 140 ml syring

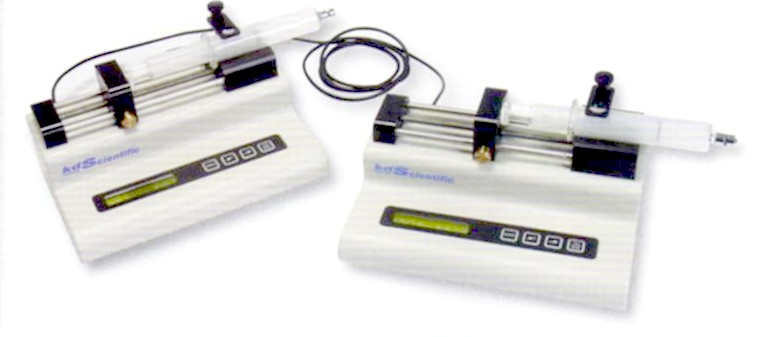

KDS 520

使用兩台KDS-100,可以分別使用

也可兩台連接後一台先注射完樣品後另一台再自動注射另一種樣品

兩台可設定不同體積及流速後,同時啟動
