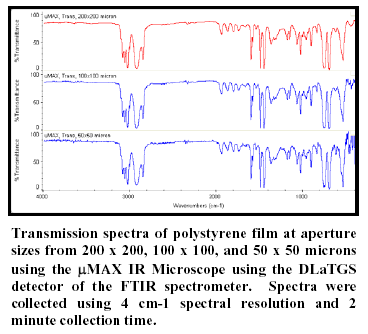

The μMAX is the first sample compartment IR microscope accessory capable of all microsampling modes - transmission, reflection and ATR. For larger micro samples (100 microns and greater) the DLaTGS detector of your FTIR provides excellent performance with the μMAX and enables full mid-IR spectral range coverage to 400 cm-1. For smaller micro samples to 20 microns in size a MCTdetector is required.

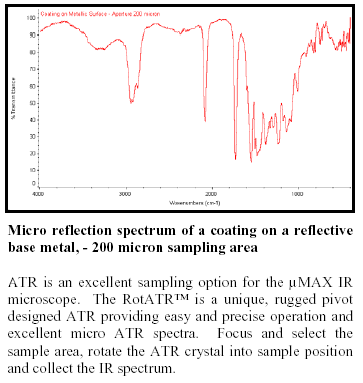

Sampling Modes – Reflection, optional
Transmission and ATR

Objective – 7.45X Cassegrainian, N.A. 0.64, fixed
for sturdy, permanent alignment

Optional Condenser – 7.45X Cassegrainian, N.A.
0.64, Z-adjust to optimize sample focus

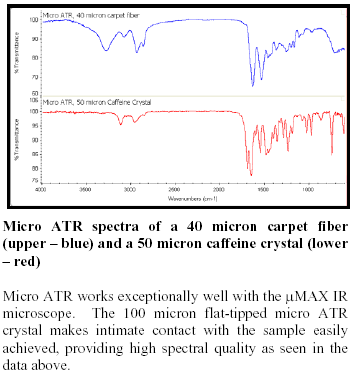

Micro ATR – RotATRwith 100 micron tip, pivot
pinned-in-place and easily removable for maximum
sample area access. Universal Ge crystal for
analysis of all micro samples.

IR Collection / Sample Viewing – Dichroic Optics
reflect IR energy and transmit visible, providing
continuous view of the sample during data
collection. Dichroic Optics eliminate the need to
switch optics from view sample to collect spectrum

Illumination – Kohler, variable intensity, 50 watt
Sample Viewing – Binocular or Trinocular Viewer
with 10X eyepieces.

全世界第一座FTIR樣品室紅外光顯微鏡,利用儀器內已有之DTGS或MCT檢測器,直接置於主機內,可得到高感度微小樣品之紅外線光譜圖,並有穿透,反射,及ATR三種模式可選擇,利用FTIR軟體,發揮可視即可得的高感度光譜,同時顯示樣品及紅外光譜,不但功能強大,更是最經濟實惠的顯微鏡附件.
