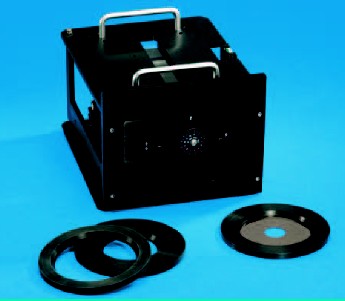

Disk CheckIR - Lubrication thickness on Hard Disk

Application : Lubrication Thickness of Hard Disk analysis

Build in ZnSe Polarizer

Provide motor multi-point wafer analysis

Contamination-free wafer mount

傅利葉轉換紅外線光譜儀 FT-IR

for: Thermo Nicolet Perkin-Elmer Varian(Digilab) Bio-Rad Bucker Bomem Jasco Shimadzu Mattson Horiba Midac

Grazing Angle Specular Reflectance

金屬表面薄膜分析(固定角度)

75 。 incident angle

Build in Si Polarizer





Variable Angle Specular Reflectance

金屬表面薄膜分析(可變角度)

30。 to 80。 連續可變換角度,易調整,高能量輸出,

With 1/8",3/8",and 5/8" for Different Sample Size

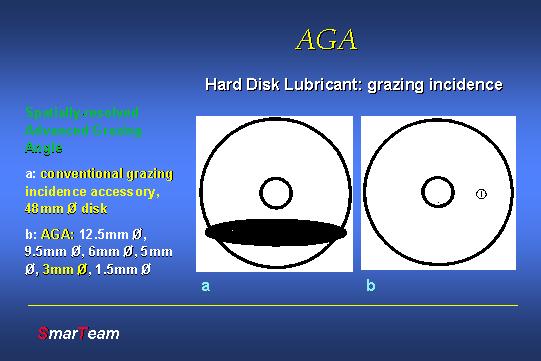

Advance Grazing Angle Specular Reflectance

金屬表面薄膜分析(固定角度)

80 。 incident angle

The reflected beam from the sample is passed through a prism which then redirects the beam to the detector

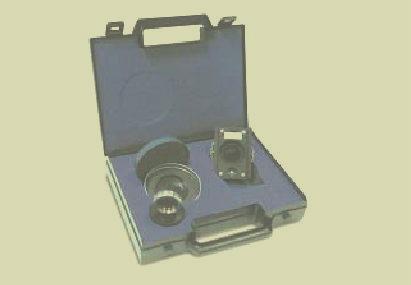

Polarizer

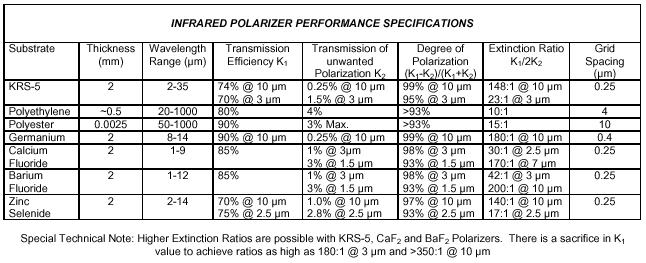

Please see attachment for specification of different material and application

You can choose polarizer with specular or HATR accessory to increase sensitivity in FTIR

Refractor for Specular Reflectance

Application : Kinetic Analysis of Thin Film on Metal

Heatable to 500 degree C,10 -4 to 2 Atm Pressure

Application : Surface coated, Lubricated Surface,Polymer coated on metal,Dielectric Semiconductor

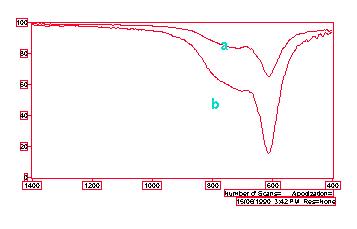

Comparison test: thin film on Al substrate

a: without polarizer

b: p-polarization maximises interaction

Syringe Pump

Hold 10ul-60ml Syringe

Mini Flow Rate :0.1ul/hr

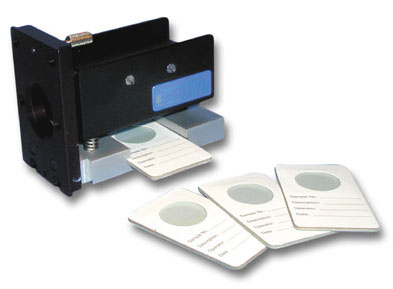

Inverted Specular Reflection

30° specular reflection accessory takes on a new dimension when it is configured in an inverted orientation and used with disposable glass sample cards coated with low emissivity coating (Low E Sample Cards). Low E Sample Cards are inexpensive and disposable



Application :

polymer films, glue, epoxy, paint and varnish which might contaminate a liquid cell



可360度旋轉變更入射角樣品架

Brewster's Angle Sample Holder

Application :

Eliminates interference fringes which offer obscure weak band when used with polarizer

Handy for determining film thickness and refractive index

Compatible with Polarizer

Mount on standard sample slide holder

Include two sample supports.

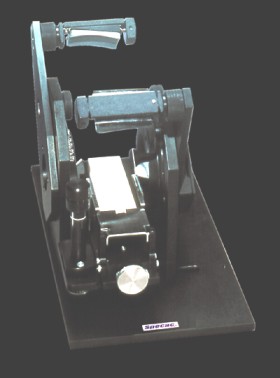

Monolayer/Grazing Angle Specular Reflectance

variable 8-85 degree

Application :

Reflection-absorption spectra of solids
Langmuir-Blodgett films
Surfactant studies
Liquids in biological membranes
Semi-conductors
Paints
Resins
Polymer coatings
Matt surfaced samples
Molecular orientation of surfaces
