Seagull : ATR & Diffuse Reflectance Multi-Purpose Applications

Variable Angle ATR : 5 to 85 degree

Optional :

• Heated Stage up to 100 degree C for ATR and Diffuse
• Flow-Through Liquid ATR Cell,Volume : 1 ml

Continuously Variable Angle HATR Up to 350 degree C

25 - 85 degree angle of incidence

Sample holders for solids & liquids

Application :

• Surface analysis of films and sheets
• Monolayer films on metal and dielectric surfaces
• Determine optical constants of thin films and bulk samples
• Chemical reaction monitoring

Single Reflectance HATR for FTIR

一般傳統的多次反射式HATR要求樣品必須要與Crystal緊密的結合,同時其吸收值不可太高,才能測得一個良好的光譜圖,但是在講求效率精確的今天,研究者及企業必須同時面對各種不同的樣品,成品亦是中間產物,這些有時無法對樣品做前處理,亦是必須直接作成品品質分析時,傳統的多次反射式HATR便無法解決這些問題

單點單次高壓反射式HATR即可解決這些問題,利用Crystal本身抗磨損的特性,直接將樣品放在Crystal上面,樣品不須再經過任何處理,便可直接加壓,壓力可至10 lbs,使樣品跟crystal緊密的接觸,其接觸面積只有1.6 mm,並具有Purge 裝置,可消除空氣中CO2及H2O的干擾,得到一個正確的IR光譜圖

• High throughput,about 25 %
• For Solid,Liquid,Power sample
• Can be heated up to 120 degree C
• For rubber, polymer, paint, fiber etc
• Fixed 45 degree
• Material :ZnSe,Ge,AMTIR,Dimand

Variable Angle ATR

30。- 60。連續可變換角度,易調整,高能量輸出,

已含45。50×10×3 mm KBS-5 Crystal

並有ZnSe 及Ge Crystal 供選擇

Horizontal ATR ( in sample compartment )

使用80×10×4 mm 45。ZnSe Crystal, 面積大,感度高

For Solid , Liquid , Thin Film Sample

具有Trough,Flat Plate及KRS-5,Ge Crystal可供選擇

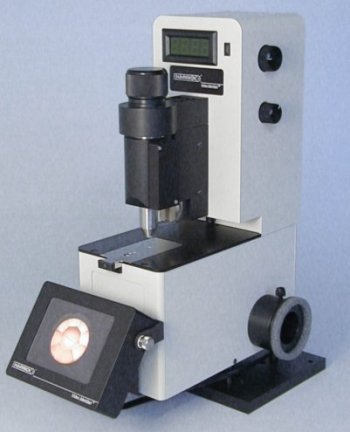

Diamond ATR with 4" LCD Video Monitor

Solid Sample - 50 um

Scan Range : 4000 - 400 cm-1

110X Magnification

Can Change to Ge Crystal ( no View)

FastIR : Single Reflectance HATR

Fixed 45° incident angle for liquid, paste or soft solid

Optional :

• Flow-Through Liquid Cell
• Temperature Controlled Liquid Cell up to 200 degree C

Heating Stage Real Time HATR Reactor

Application : Real-Time monitor of liquid reaction

Heatable to 250 degree C

Pressurizable to 800 psi

316 stainless steel reaction vessel

VeeMax II-Variable Angle Single Reflectance ATR for Depth analysis

FatIR Oil Analysis :

ATR FTIR oil analyzer that complies with the FDA-approved AOAC method 2000.10 for routine quantitative ATR measurements of total trans fat content

Real-time in situ monitoring of the trans fat formation during processing of edible oils at temperatures up to 175°C.

Qualitative and quantitative analysis of liquids and pastes by ATR spectroscopy.

FatIR optical assembly with:

SuperCharged? ZnSe mounted ATR crystal.
Two imbedded cartridge heaters.
Two K-type thermocouples.
Mating and PermaPurge? hardware for the specified FT-IR spectrometer.
Low Voltage (24V) Temperature Controller.

Golden Gate Diamond ATR for Supercritical Fluids Analysis

A high temperature and high pressure low volume FTIR Supercritical fluids Analysis Accessory

Diamond Plate

Up to 300 degreeC

Up to 6000 psi pressures

Low volume stainless steel sample cell,28 ul

Standard 1/16" fitting

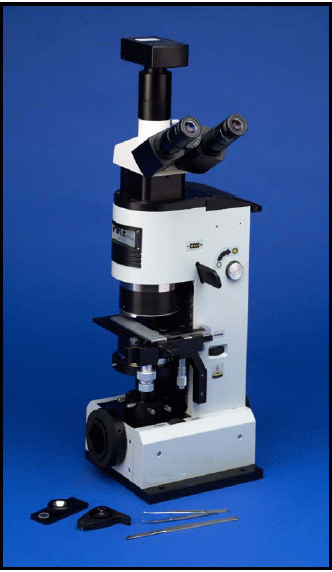

Low Cost IR Microscope in Sample Compartment

ATR-Up to 50 um Sample

Model: %T / Reflectance

傅利葉轉換紅外線光譜儀 FT-IR

for: Thermo Nicolet Perkin-Elmer Varian(Digilab) Bio-Rad Bucker Bomem Jasco Shimadzu Mattson Horiba Midac

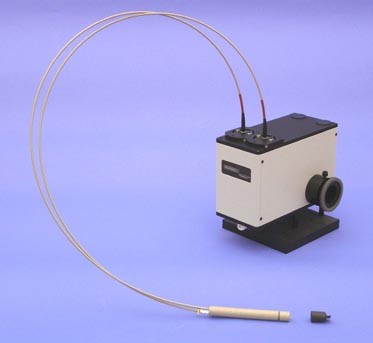

Multi-Loop ATR Fiber

Multiple reflection ATR sampling outside the FTIR spectrometer

Wavelength range: 6500 cm-1 to 600 cm-1

Standard probe length of 1 meter allows sampling outside the spectrometer sample compartment
